How to Replace A Bathroom Exhaust Fan​

A functional bathroom exhaust fan extracts moisture, stops mold, and keeps smells from increasing. However, if your exhaust fan is old, too noisy, or does not move air adequately, it is time to upgrade it. The good news is, bathroom exhaust fan replacement is not that difficult. What you need is the correct equipment, basic electrical knowledge, and a bit of patience. Today’s guide discusses how to replace a bathroom exhaust fan, tool checklist, common mistakes to avoid, and pro tips to maintain your fan for the long term.

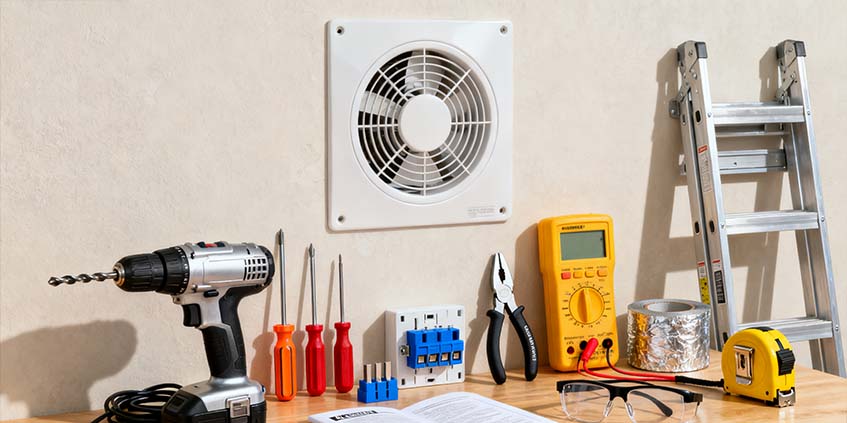

What You’ll Need Before You Start

You need to collect the right tools and safety steps to prevent errors during bathroom exhaust fan installation. Moreover, a proper setup lowers the possibility of electrical shock or drywall damage.

Tools Checklist

• Drill with driver bits
• Phillips or flat-head screwdriver
• Wire connectors (UL-approved)
• Combination pliers
• Voltage tester
• Foil HVAC tape
• Safety glasses
• Measuring tape
• Ladder or step stool

A voltage tester is necessary as it verifies if the wires still carry power. According to the National Institute for Occupational Safety and Health (NIOSH), live wires present thousands of preventable injuries each year.

Safety Steps You Should Never Skip



• Switch off the Power at the Breaker: Turning off just the wall switch is not sufficient. Always power down the entire circuit from the breaker panel to remove the risk of wires staying electrified.

• Check All Wires Before Touching Anything: With a voltage tester, confirm the circuit is dead for your safety.
• Secure Your Ladder: A balanced ladder helps avoid falls, particularly when you work overhead while detaching the old housing.

Choosing the Right Fan Size (CFM Rating)

Measure the CFM (cubic feet per minute) of the bathroom to enhance your fan performance. A right CFM rating guarantees the new fan eliminates humidity fast. For example, AlorAir bathroom exhaust fans like VentiPro 720 – a powerful 10-inch bladed fan that produces 720 CFM of airflow, controls temperature and humidity perfectly.

General rule:

• Bathroom square footage x 1 CFM = minimum fan size.

The Home Ventilating Institute advises including additional CFM for bathrooms with enclosed toilets or high ceilings.

Step-by-Step Guide: How to Replace a Bathroom Exhaust Fan

Now that you have prepared your tools and materials, begin your bathroom exhaust fan replacement​. Follow these steps:

Step 1: Remove the Old Fan Cover

Gently take down the outer covering till the metal springs show up. Grip the springs and slide the cover free from the housing. Scratch around it with a utility knife when the cover has paint securing the sides. This stops drywall impair during bathroom exhaust fan removal.

Step 2: Disconnect the Old Fan Assembly

Find the mounting screws that hold the fan assembly in place. Use a drill or screwdriver to disconnect them. Examine them with a voltage tester before touching any wires. In fact, when you switch off the breaker, residual current might stay in a few circuits.

According to the Centers for Disease Control and Prevention (CDC), electrical contact is a serious home safety risk, specifically during overhead work.

Step 3: Take Out the Old Housing

A few installations permit housing removal from the bathroom side. Others need access from an attic. Loosen the housing by twisting it from the drywall opening. Do not hurry here; this will prevent breaking the surrounding ceiling.

Move a flat pry bar among the wood and bracket if the fan is pinned or secured to a joist to free it. Slow pressure prevents cracking across the mounting point. This step is to prepare the ceiling for a new bathroom exhaust fan installation.

Step 4: Install the New Housing

Install the new casing into the ceiling opening and adjust it so the grille will fit perfectly after installation. Seal the housing with the mounting brackets. Tighten the screws till the unit stands firm without shifting.

Secure any little gaps around the housing with foil tape. Air leaks decrease ventilation and wear out airflow efficiency.

Step 5: Connect the Wiring

Connect the wires properly:

• Neutral: white
• Ground: Green or bare
• Hot: black

Use UL-approved wire couplings for secure joints. Gently drag the fan motor to verify wires are not pinched before closing the housing.

Step 6: Reattach the Fan Cover and Test the Unit

Connect the springs to the new cover and stick it into place. Switch the power back on and operate the fan. Pay attention to airflow. A healthy fan generates a stable, low hum without banging. Weak air circulation suggests duct blockage or a bad seal around the housing.

Tips to Make Your New Fan Last Longer

Proper maintenance increases the life of your bathroom exhaust fan and holds humidity in check. Moreover, routine attention lowers noise, enhances airflow, and facilitates better indoor air quality.



• Clean the Grille Every 2–4 Months: Dust hinders air circulation and pushes the fan to work harder. Removing the cover and cleaning it with mild soap maintains steady ventilation.

• Vacuum Dust from the Motor: A light vacuum around the motor helps avoid buildup on blades. Clean blades carry air more effectively and assist right fan installation performance. Additionally, a clean motor lowers vibration and prolongs its beneficial life.

• Run the Fan After Every Shower: Condensation stays after hot showers. Operating the fan for 15-20 minutes draws steam out of the room and stops mold.



• Add a Humidity Sensor Switch: Sensors switches activate the fan automatically when the humidity increases. For instance, AlorAir VentirMax 780SD automatically starts and shuts off. The unit is IP55-rated (dust & splashproof), with a built-in dehumidifier, and a quiet operation. This feature helps busy households and confirms constant ventilation even when someone forgets to turn on the switch.

When DIY Is Safe, and When to Call a Professional?

Generally, replacing a bathroom exhaust fan is safe if the wiring is in good condition so far.

Contact a certified professional when:

• The former fan is without a ground wire.
• Wires seem burnt.
• The circuit trips often.
• You are upgrading to a high-powered fan that needs a new switch.

Electrical codes differ by state, and an expert might be needed for new wiring.

The Bottom Line

The bathroom exhaust fan replacement​ is the most efficient way to improve bathroom ventilation. A properly installed unit stops mold, extracts excessive humidity, and safeguards ceilings and walls from permanent damage. For maximum protection and to breathe easier, consider investing in AlorAir’s range of bathroom exhaust fans. We engineer ventilation setups that promote powerful air circulation, noiseless activity, and durable performance. Visit AlorAir today to enjoy healthier air.
